Finishes> Rustic> Trimline Dover Bronze> Trimline Dover Bronze 20 Amp DP Switch (Antique Brass Switch/Black Insert)

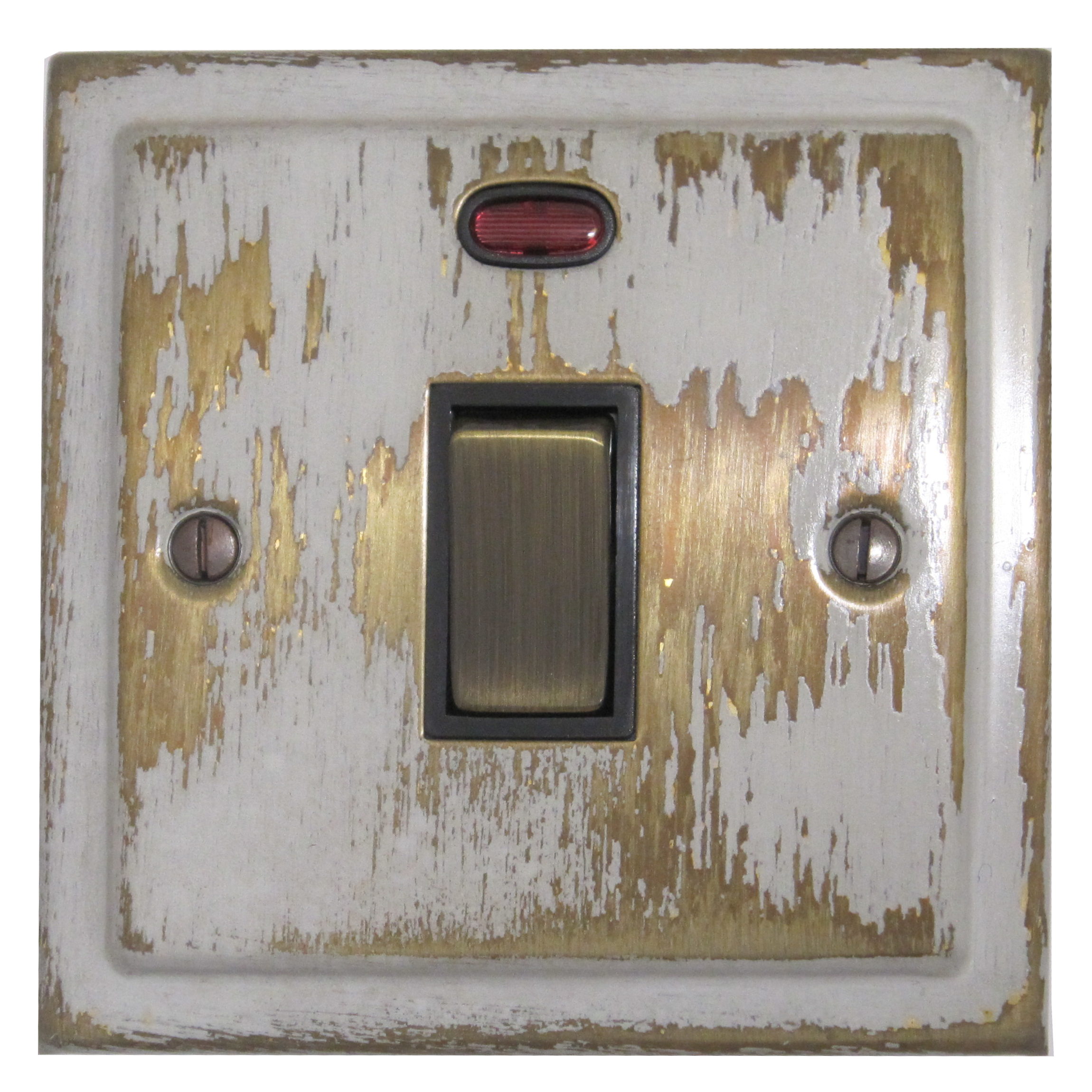

Trimline Dover Bronze 20 Amp DP Switch (Antique Brass Switch/Black Insert) - G+H TDB326

Plate Dimensions (mm)	94 (W) x 94 (H) x 8 (D)
Insert Material	Polycarbonate
Earth Strap	Mild Steel
Operating Voltage(AC)	250V @ 50Hz
Termination Type	Screw
Warranty	10 years
Product Class 1	Must be earthed
Maintenance	Clean with a soft cloth only. Do not use a cleaning agent of any description.
Please Note	Do not use masking tape on this product.
Style	Stepped Profile
Switch Material	Metal
Required back box depth	25mm
Load Rating	20A
Switch type	Double pole

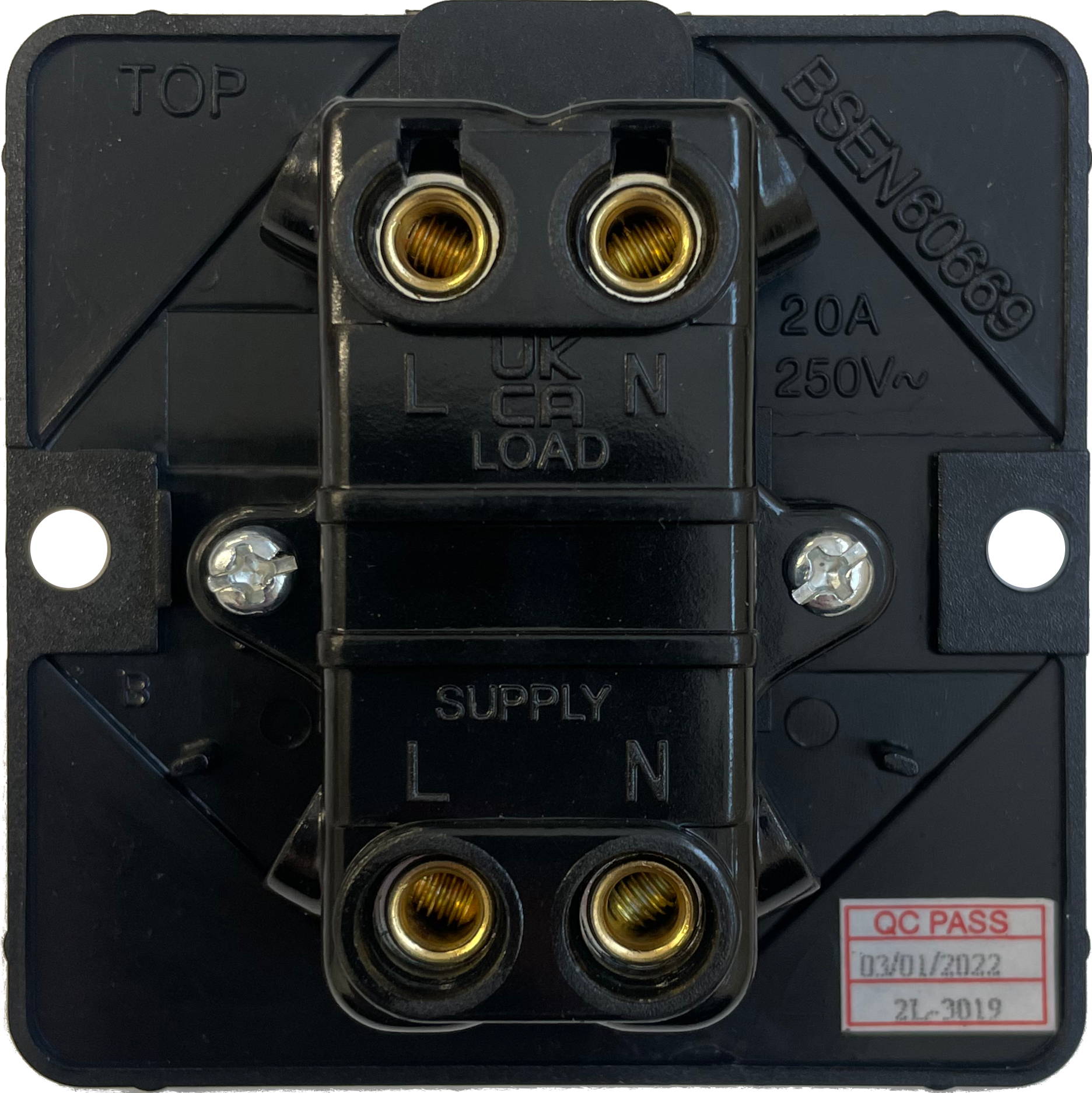

Terminal Capacity	4x 4.0mm² ,3x 6.0mm²，1x 16.0mm²(L&N) / 3x 2.5mm² ,2x 4.0mm²，1x 6.0mm²(EARTH)
Standards	BS EN 60669-1
IP Rating	IP2XD
