Finishes> Black> Contour> Flat Black LED Dimmer (1 Gang)-418889

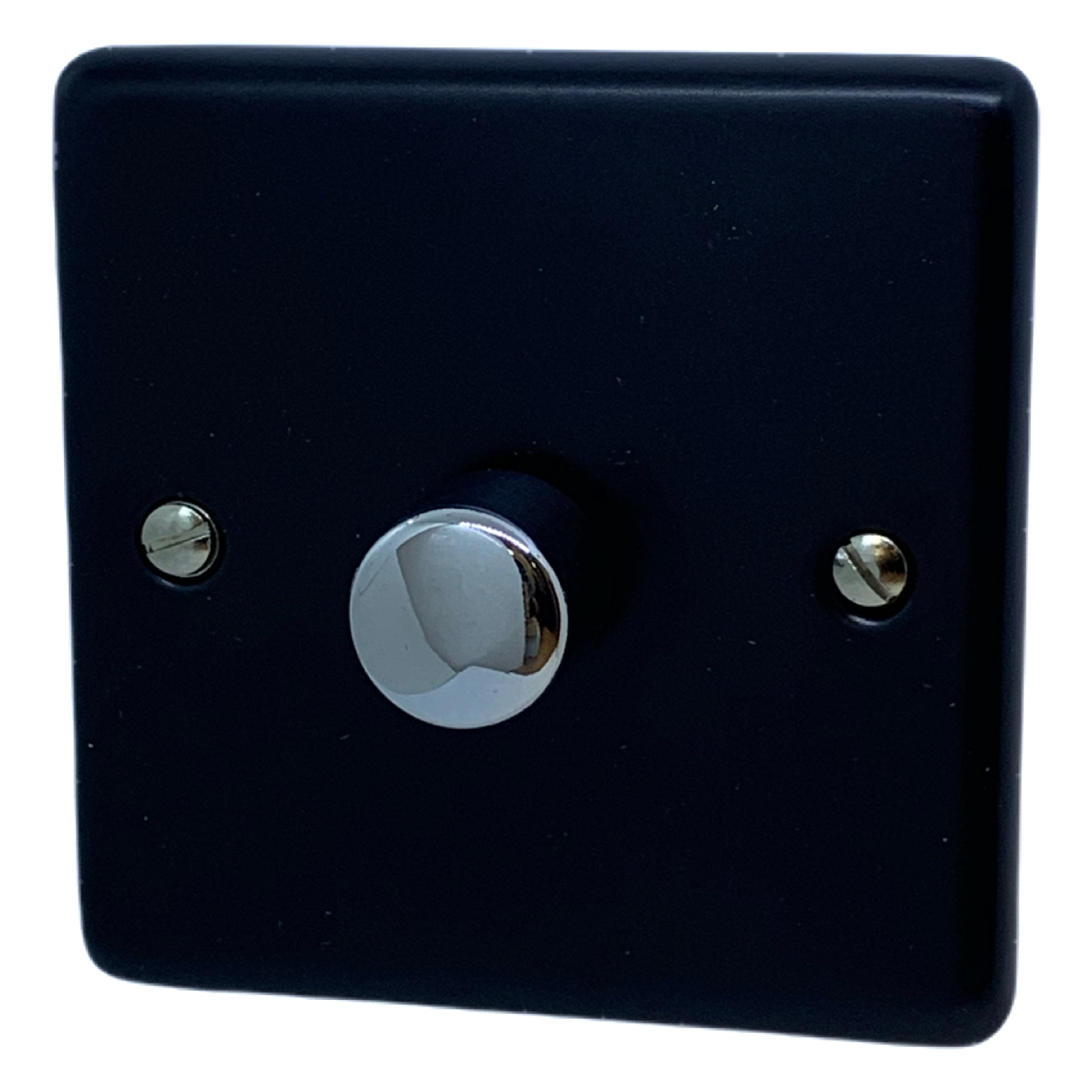

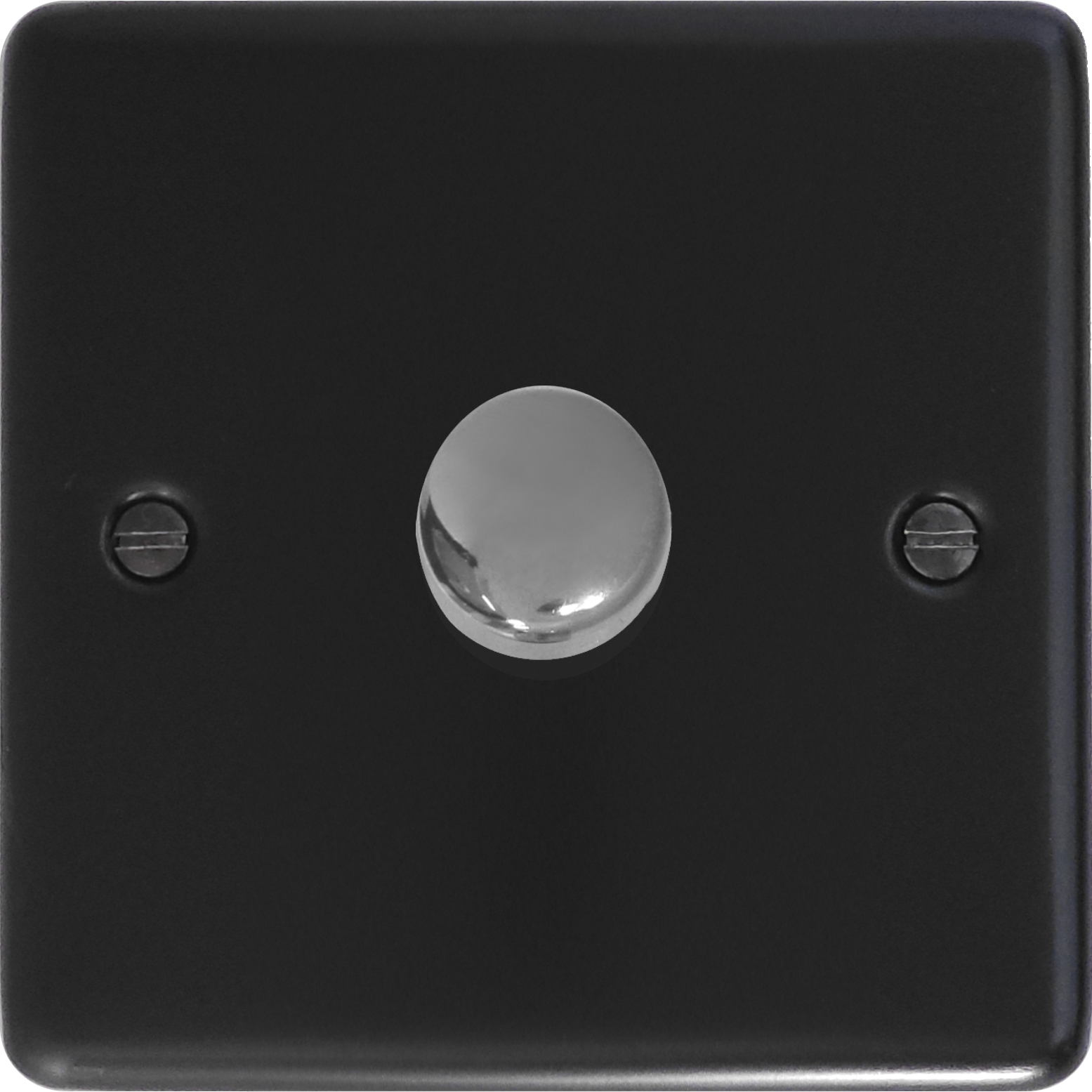

Flat Black LED Dimmer (1 Gang)-418889 - G+H CFB521PC

Plate Dimensions (mm)	85 (W) x 85 (H) x 8 (D)
Insert Material	Polycarbonate
Earth Strap	Mild Steel
Operating Voltage(AC)	250V @ 50Hz
Termination Type	Screw
Warranty	10 years
Product Class 1	Must be earthed
Maintenance	Clean with a soft cloth only. Do not use a cleaning agent of any description.
Please Note	Do not use masking tape on this product.
Style	Rounded Profile
Plate Material	Mild Steel, Powder Coated
Required back box depth	25mm
Load Rating	250W
Switch type	2-way only with switch (2 dimmers cannot opperate together in 2-way configuration)
Terminal Capacity	4 x 1.0mm², 4 x 1.5mm² ,2 x 2.5mm² ,1 x 4.0mm²
Standards	BS EN 60669-2
IP Rating	IP2XD
