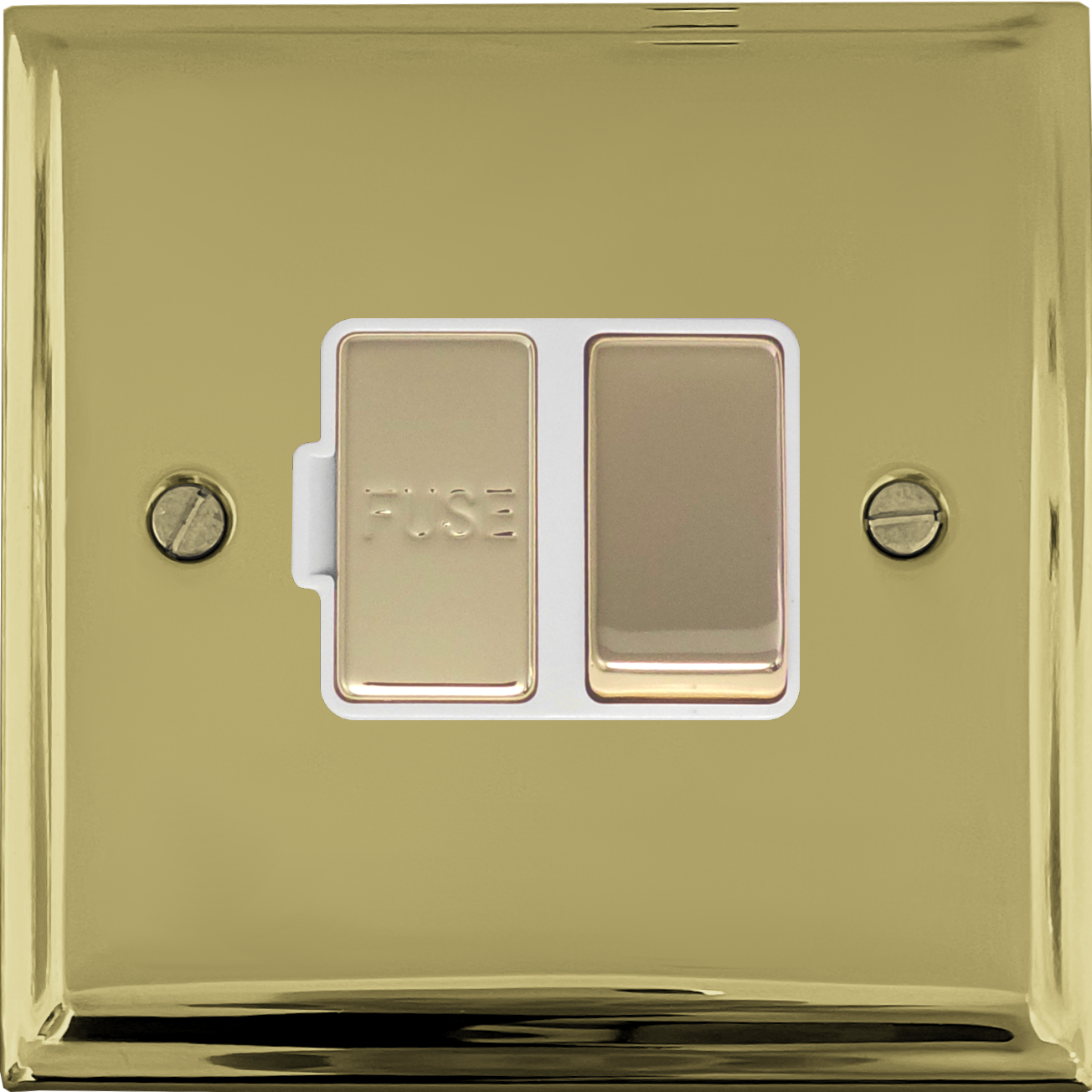

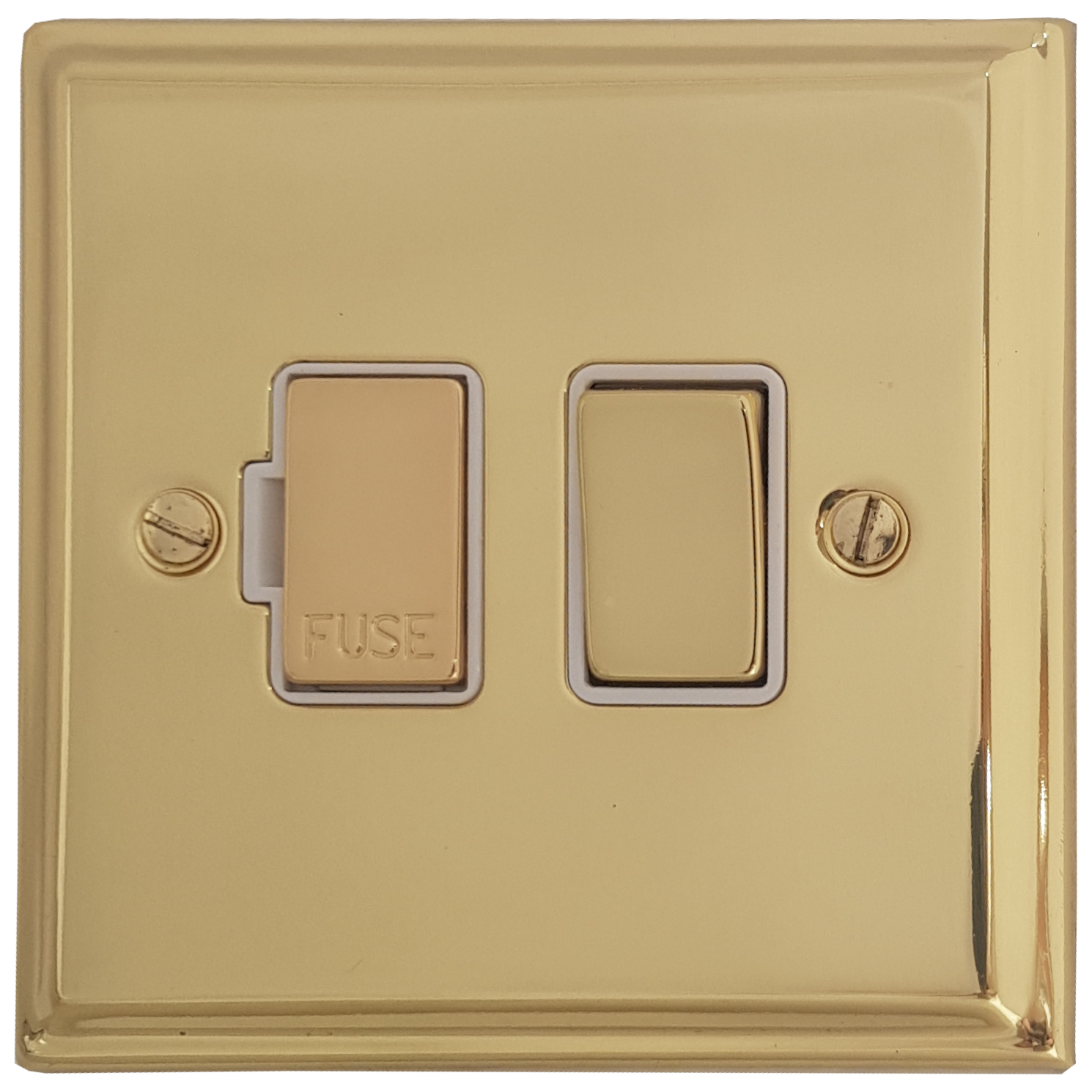

Deco Polished Brass Switch/White Inserted Fused Spur (Brass Switch/White Insert) - G+H DB257

Plate Dimensions (mm)	95 (W) x 95 (H) x 8 (D)
Insert Material	Polycarbonate
Earth Strap	Mild Steel
Operating Voltage(AC)	250V @ 50Hz
Termination Type	Screw
Warranty	10 years
Product Class 1	Must be earthed
Maintenance	Clean with a soft cloth only. Do not use a cleaning agent of any description.
Style	Stepped Slope Profile
Plate Material	Solid Brass, Hand-finished, Lacquered
Switch Material	Metal
Required back box depth	25mm
Load Rating	13A
Switch type	Double pole

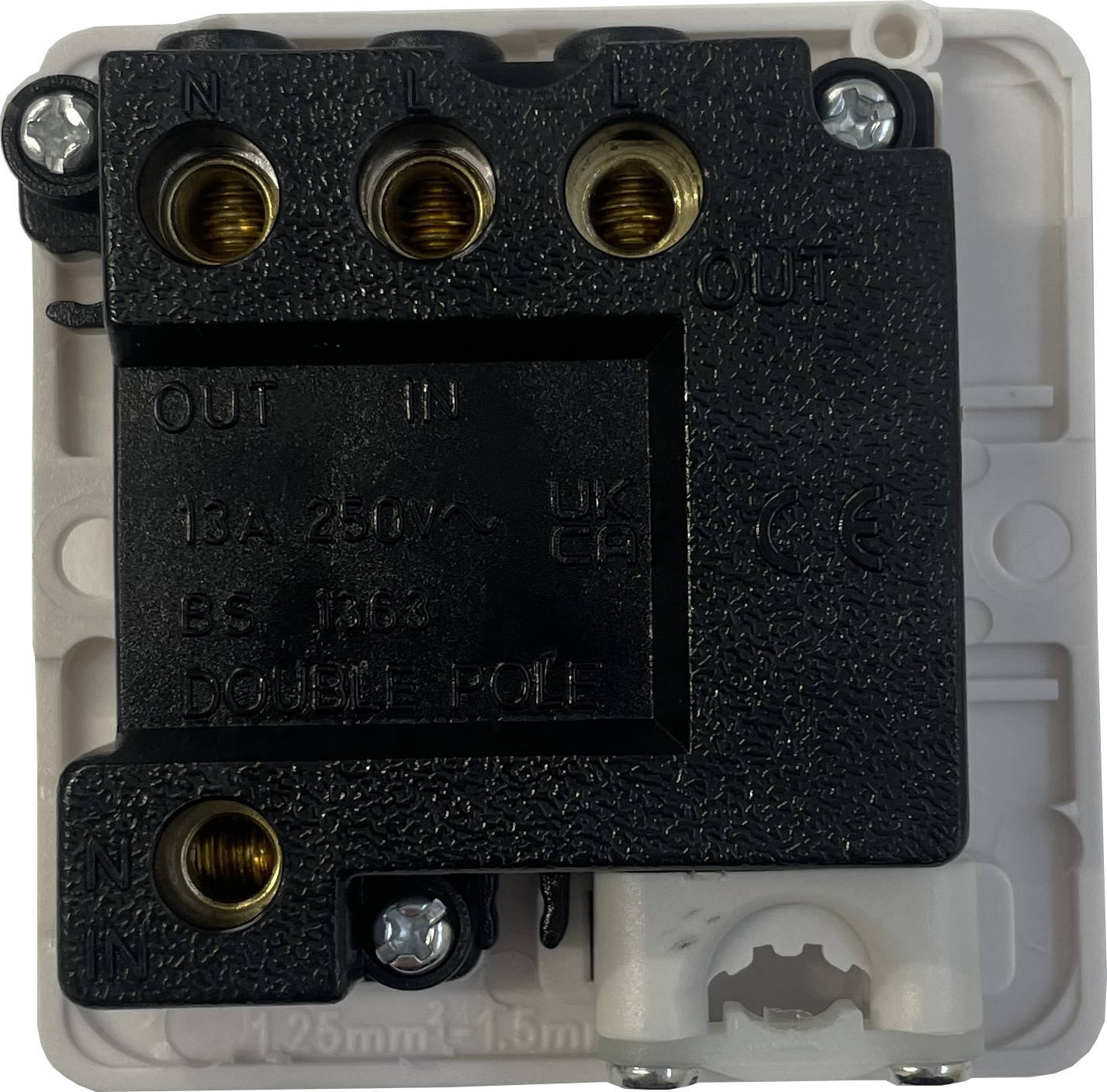

Terminal Capacity	3x 2.5mm² ,3x 4.0mm²，2x 6.0mm²(L&N) / 3x 2.5mm² ,2x 4.0mm²，1x 6.0mm²(EARTH)
Standards	BS 1363
IP Rating	IP2XD
