Finishes> Graphite> Contour> Contour Graphite Double Socket with USB (USB-A and USB-C/Black Insert/Black Plastic Switches)

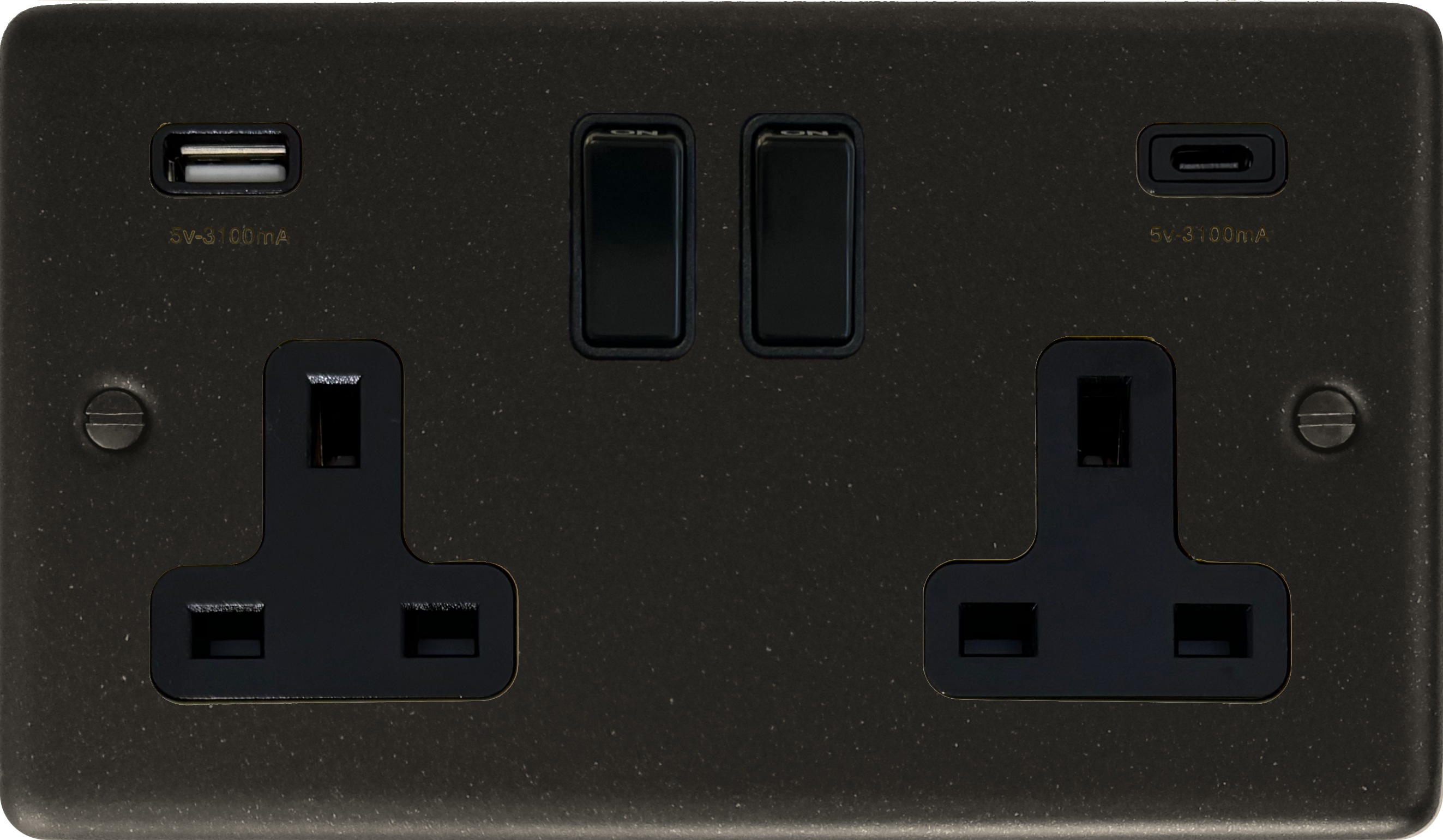

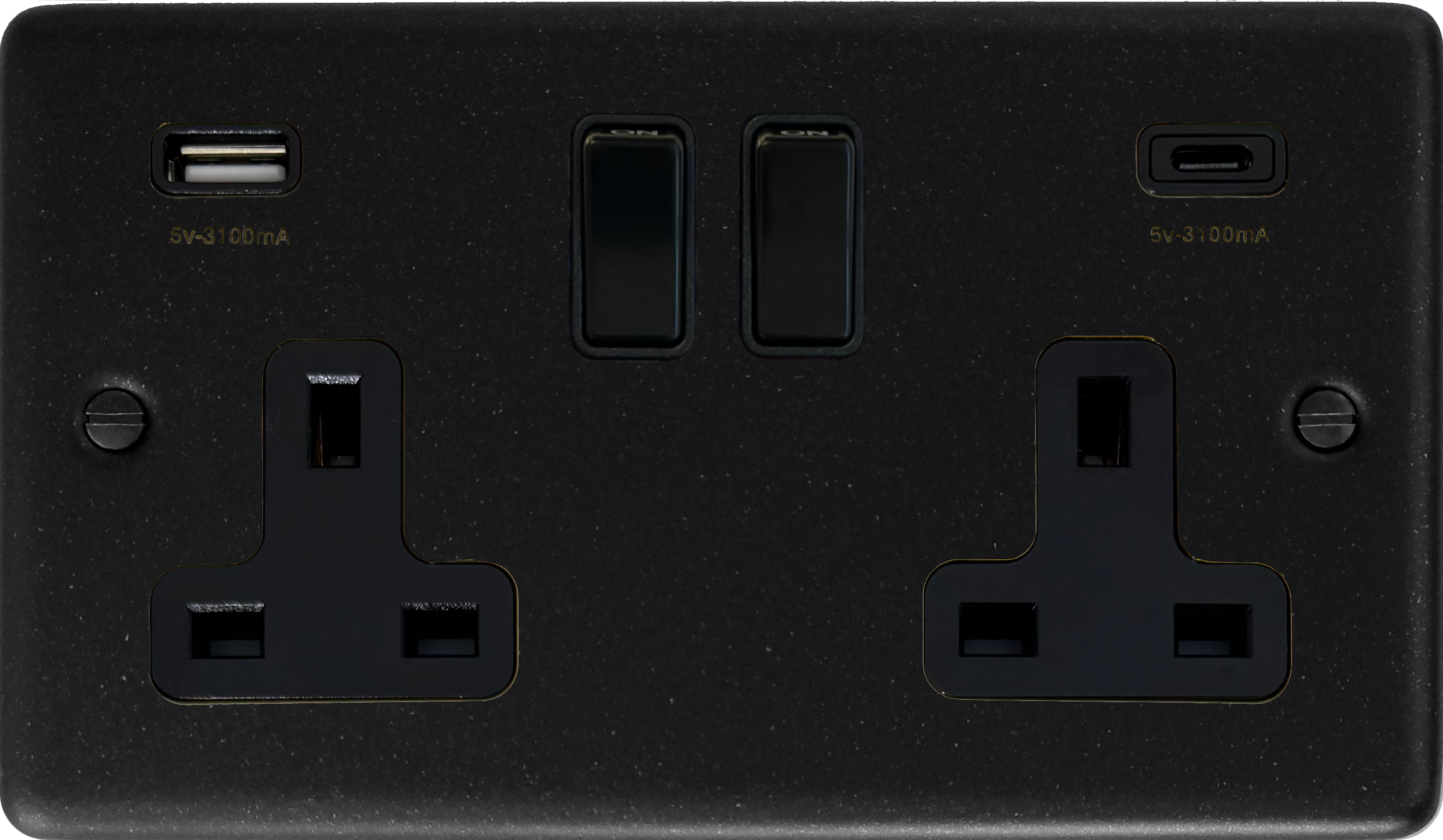

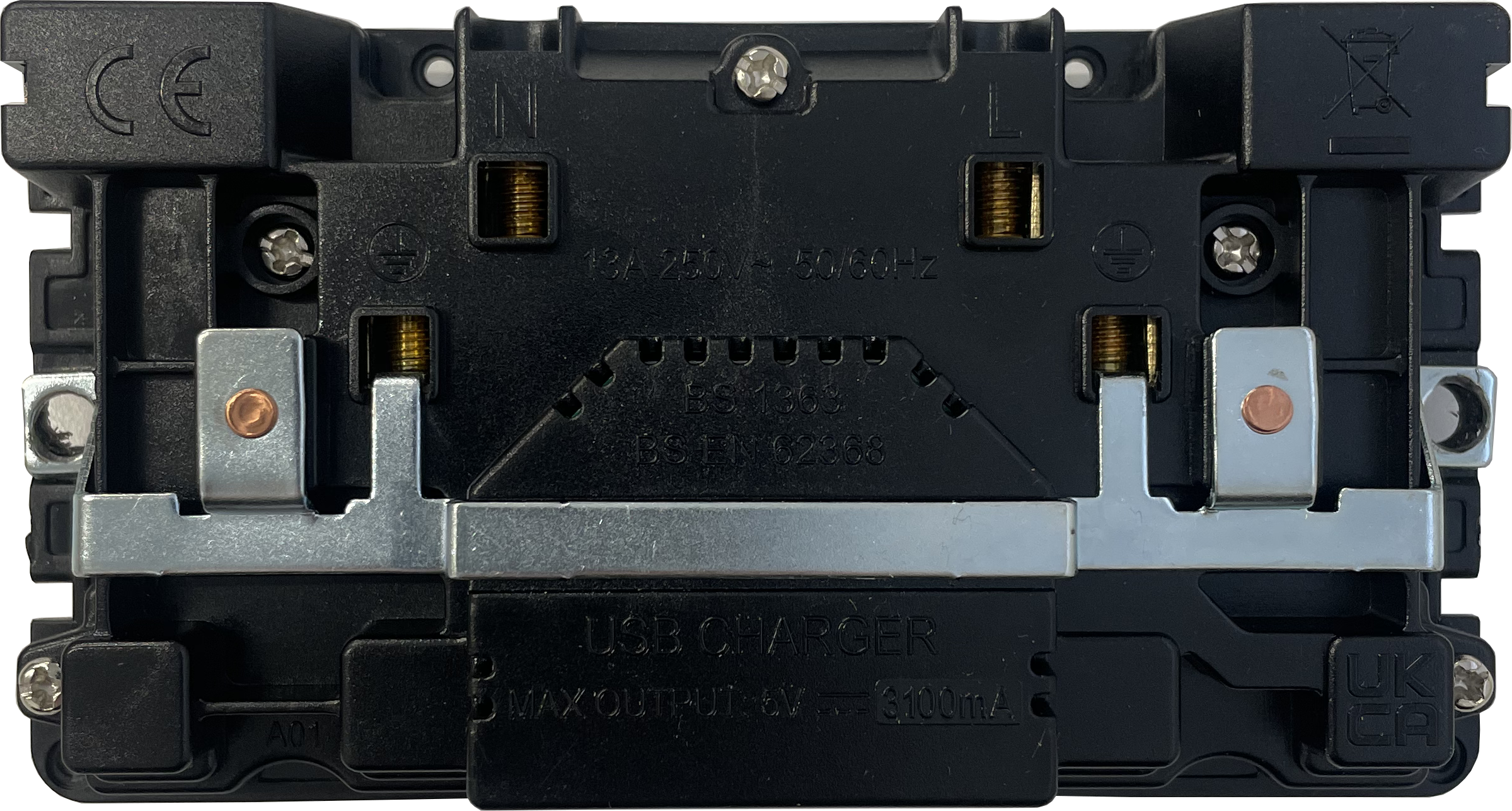

Contour Graphite Double Socket with USB (USB-A and USB-C/Black Insert/Black Plastic Switches) - G+H CG911B

Plate Dimensions (mm)	146 (W) x 85 (H) x 8 (D)
Insert Material	Polycarbonate
Earth Strap	Mild Steel
Operating Voltage(AC)	250V @ 50Hz
Termination Type	Screw
Warranty	10 years
Product Class 1	Must be earthed
Maintenance	Clean with a soft cloth only. Do not use a cleaning agent of any description.
Style	Rounded Profile
Plate Material	Mild Steel, Powder Coated
Switch Material	Polycarbonate
Required back box depth	25mm
Load Rating	13A
Switch type	Single Pole
Terminal Capacity	3x 2.5mm² ,3x 4.0mm²，2x 6.0mm²
Standards	BS 1363, BS EN 62368
IP Rating	IP2XD
