Finishes> Rose Gold> Trimline> Rose Gold Unswitched Fused Spur (Black Insert)

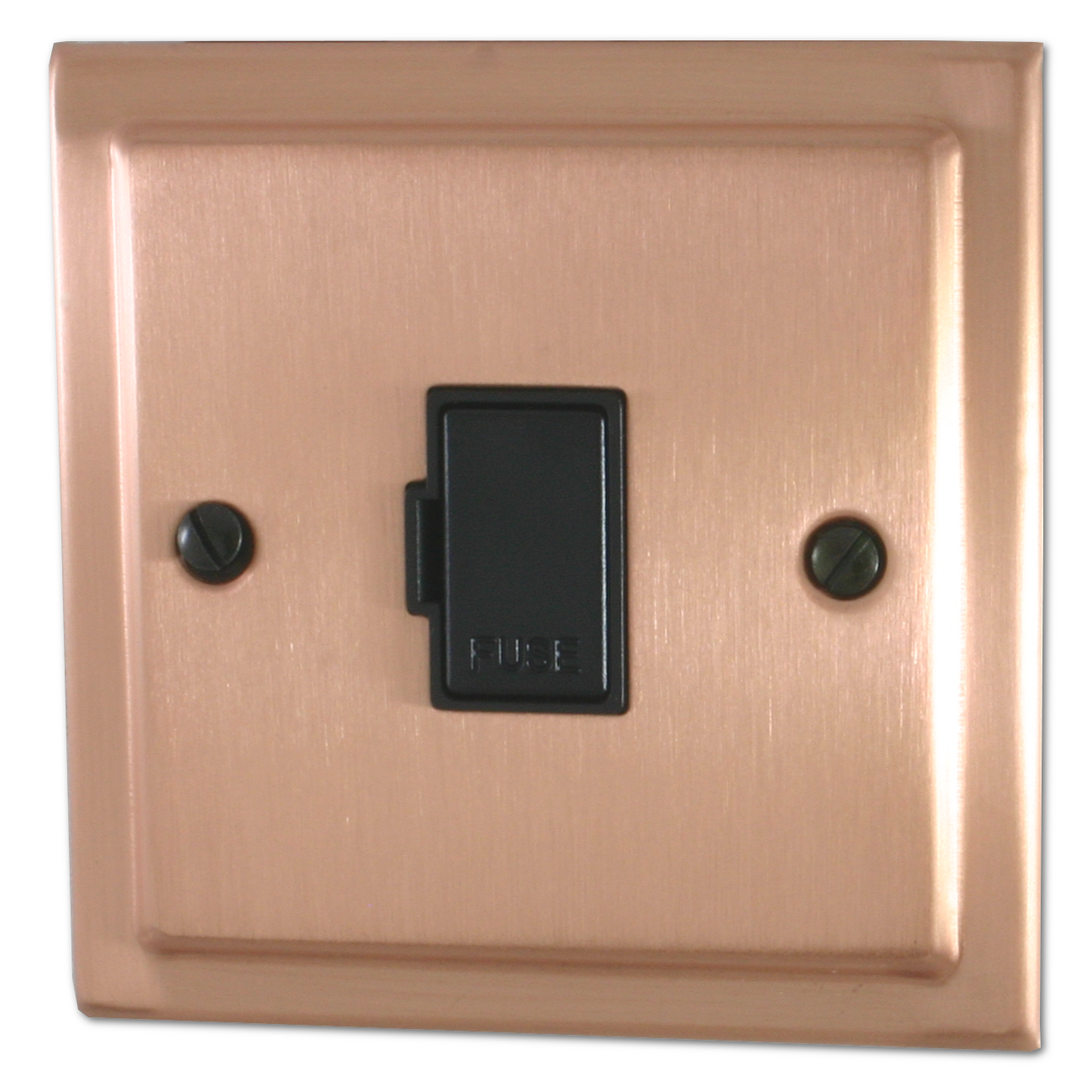

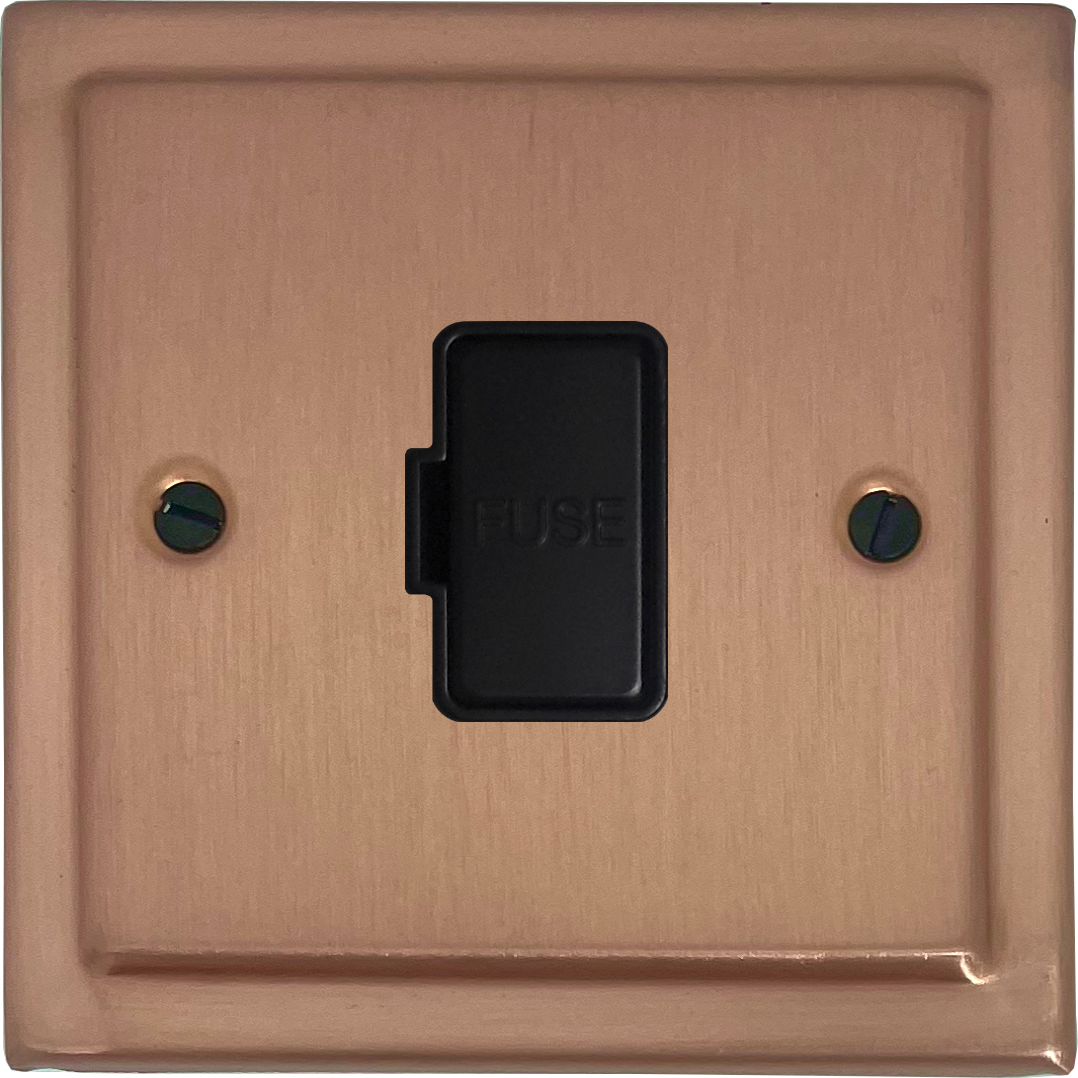

Rose Gold Unswitched Fused Spur (Black Insert) - G+H TRG90B

Plate Dimensions (mm)	94 (W) x 94 (H) x 8 (D)
Insert Material	Polycarbonate
Earth Strap	Mild Steel
Operating Voltage(AC)	250V @ 50Hz
Termination Type	Screw
Warranty	10 years
Product Class 1	Must be earthed
Maintenance	Clean with a soft cloth only. Do not use a cleaning agent of any description.
Style	Stepped Profile
Plate Material	Solid Copper, Hand-finished, Lacquered
Required back box depth	25mm
Load Rating	13A

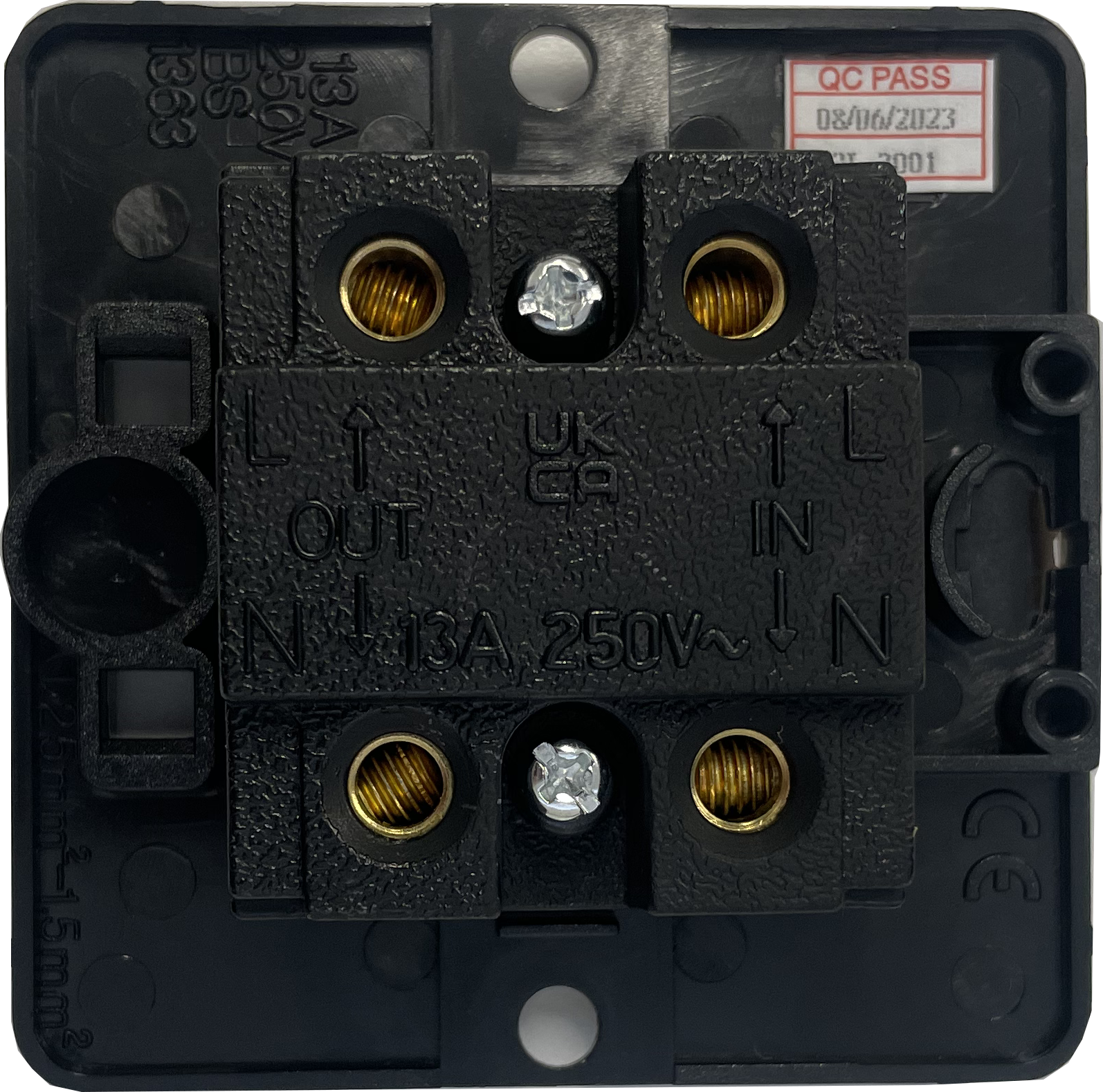

Terminal Capacity	3x 2.5mm² ,3x 4.0mm²，2x 6.0mm²(L&N) / 3x 2.5mm² ,2x 4.0mm²，1x 6.0mm²(EARTH)
Standards	BS 1363
IP Rating	IP2XD
