Finishes> Rose Gold> Trimline> Rose Gold LED Dimmer (1 Gang)

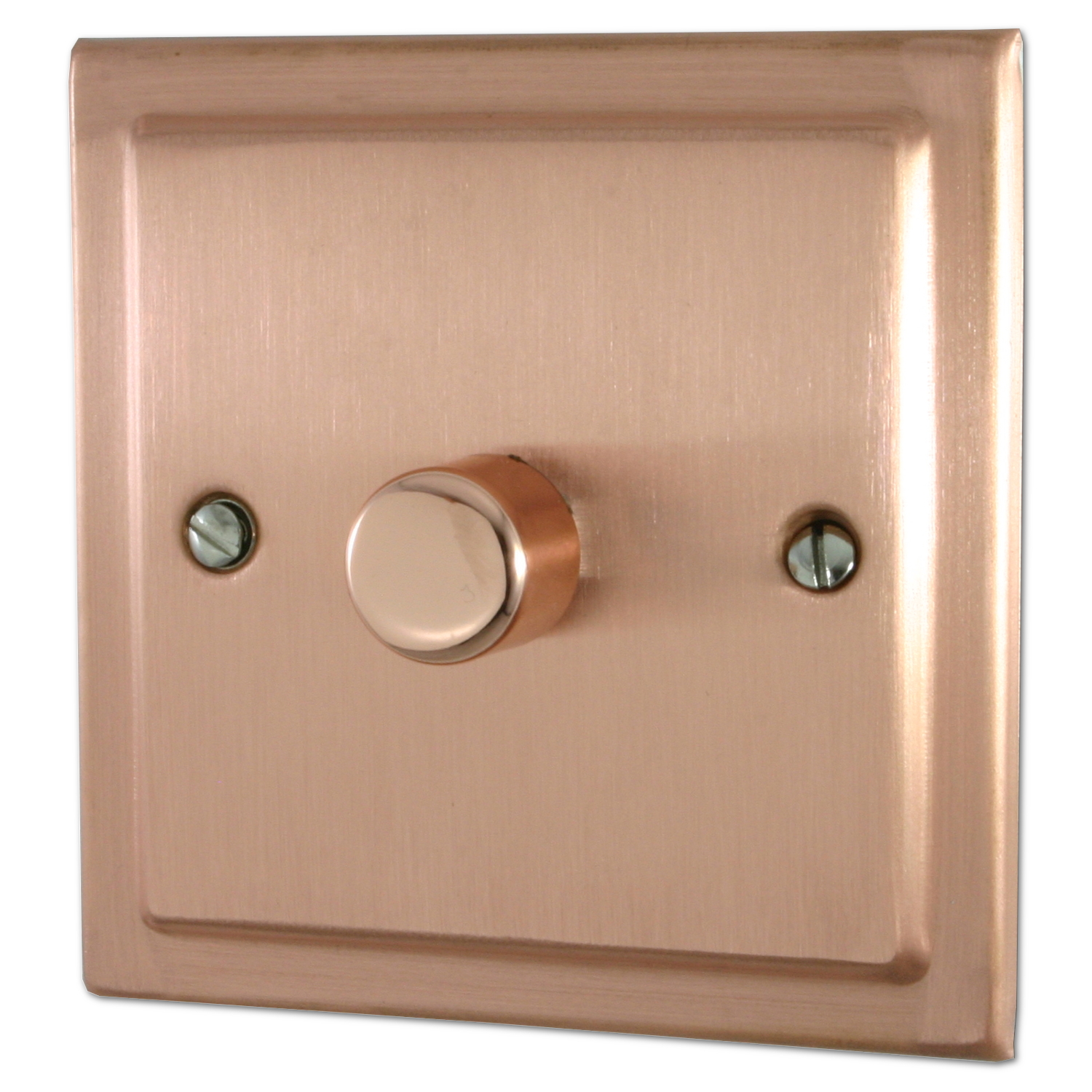

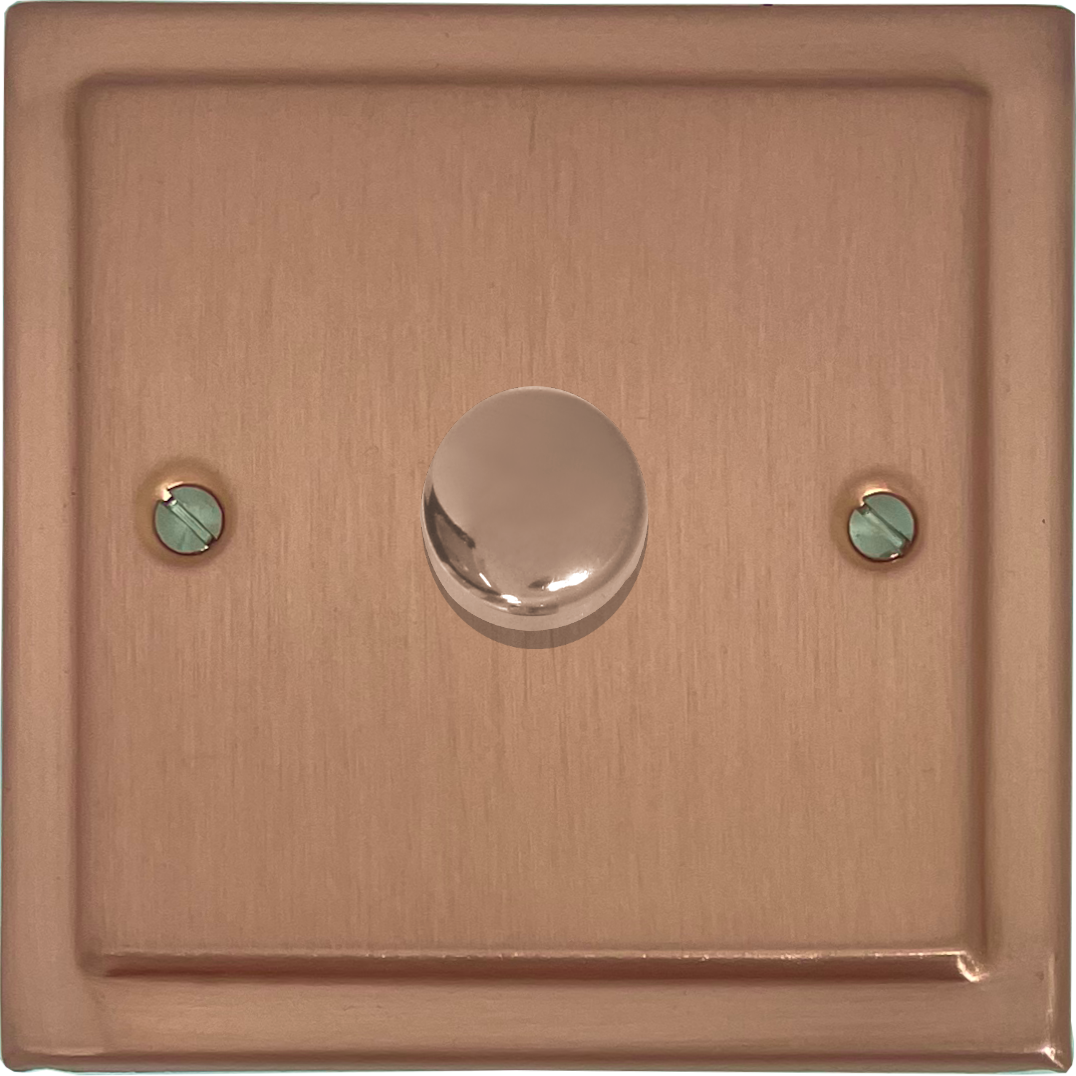

Rose Gold LED Dimmer (1 Gang) - G+H TRG521

Plate Dimensions (mm)	94 (W) x 94 (H) x 8 (D)
Insert Material	Polycarbonate
Earth Strap	Mild Steel
Operating Voltage(AC)	250V @ 50Hz
Termination Type	Screw
Warranty	10 years
Product Class 1	Must be earthed
Maintenance	Clean with a soft cloth only. Do not use a cleaning agent of any description.
Style	Stepped Profile
Plate Material	Solid Copper, Hand-finished, Lacquered
Required back box depth	25mm
Load Rating	250W
Switch type	2-way only with switch (2 dimmers cannot opperate together in 2-way configuration)
Terminal Capacity	4 x 1.0mm², 4 x 1.5mm² ,2 x 2.5mm² ,1 x 4.0mm²
Standards	BS EN 60669-2
IP Rating	IP2XD
