Finishes> Brass> Polished Brass> Deco> Deco Polished Brass Unswitched Fused Spur (White Insert)

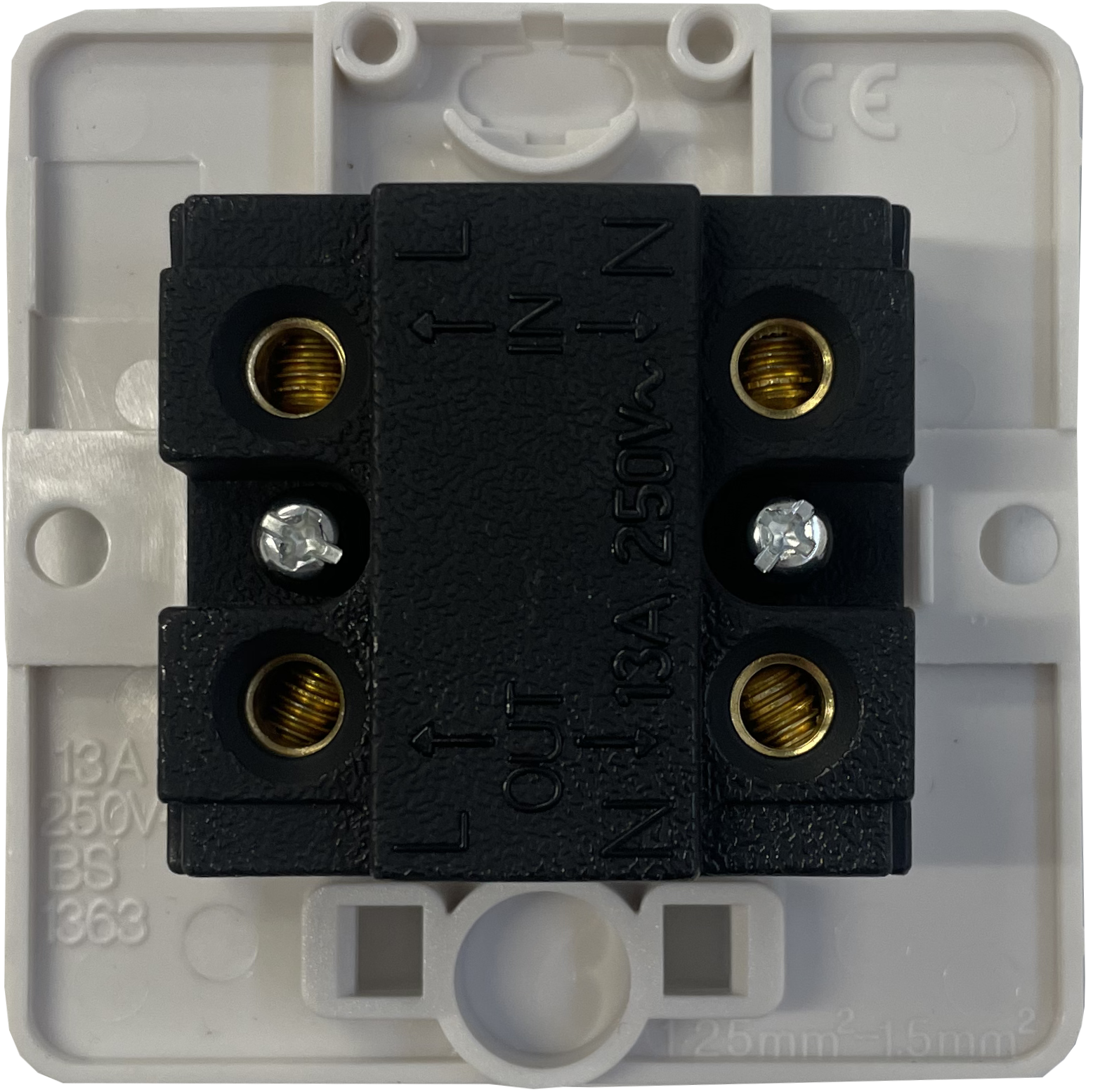

Deco Polished Brass Unswitched Fused Spur (White Insert) - G+H DB90W

Plate Dimensions (mm)	95 (W) x 95 (H) x 8 (D)
Insert Material	Polycarbonate
Earth Strap	Mild Steel
Operating Voltage(AC)	250V @ 50Hz
Termination Type	Screw
Warranty	10 years
Product Class 1	Must be earthed
Maintenance	Clean with a soft cloth only. Do not use a cleaning agent of any description.
Please Note	Do not use masking tape on this product.
Style	Stepped Slope Profile
Plate Material	Solid Brass, Hand-finished, Lacquered
Required back box depth	25mm
Load Rating	13A
Terminal Capacity	3x 2.5mm² ,3x 4.0mm²，2x 6.0mm²(L&N) / 3x 2.5mm² ,2x 4.0mm²，1x 6.0mm²(EARTH)
Standards	BS 1363
IP Rating	IP2XD
